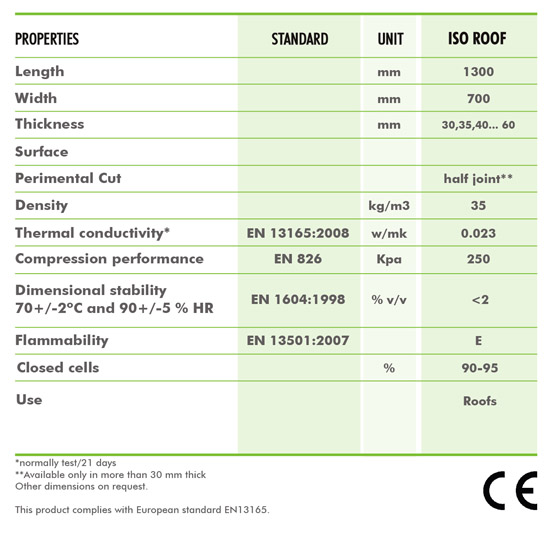

Boards specially created for roofs. Combining the lowest level of thermal conductivity with the excellent dimensional stability these boards have thickness start at 30mm. Density of 35 kg/m3. These boards are striated. Half joint fitting to avoid thermal loss and facilitate the application.



How to use it / Inclined Roof

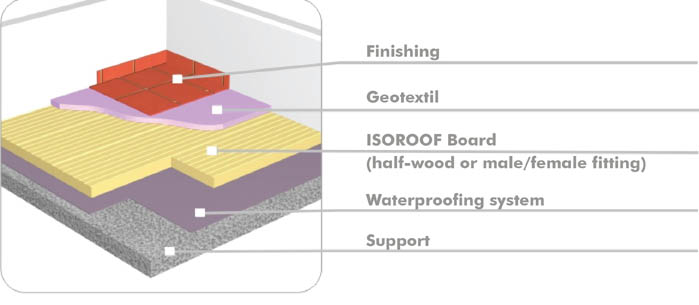

How to use it / Reversed Roof



Click here to download the PDF technical sheet.

CAD / ISOROOF details:

Horizontal roofs - ISOROOF

 DWG
 JPG
 3D

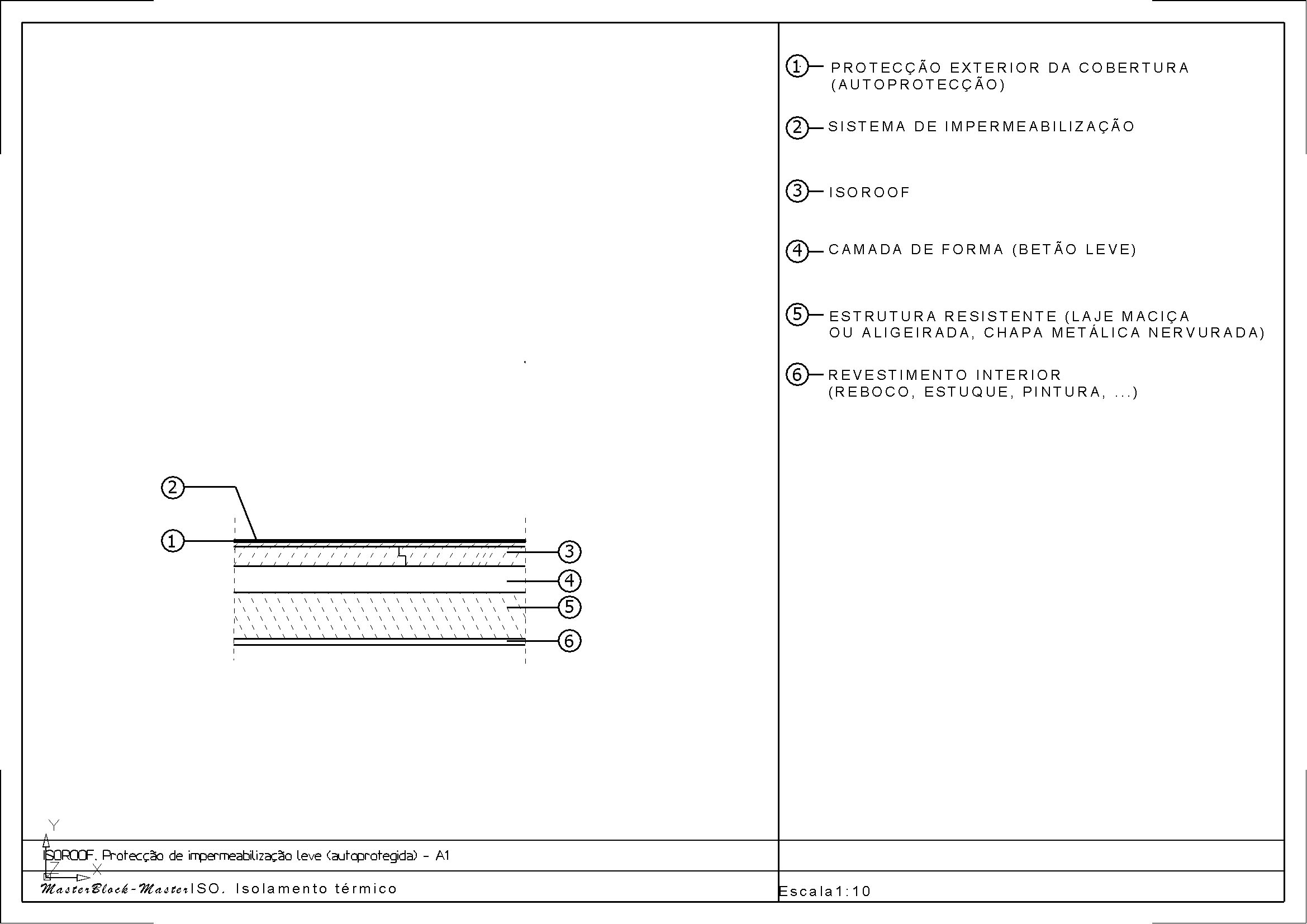

001 - Isoroof - Light waterproofing protection

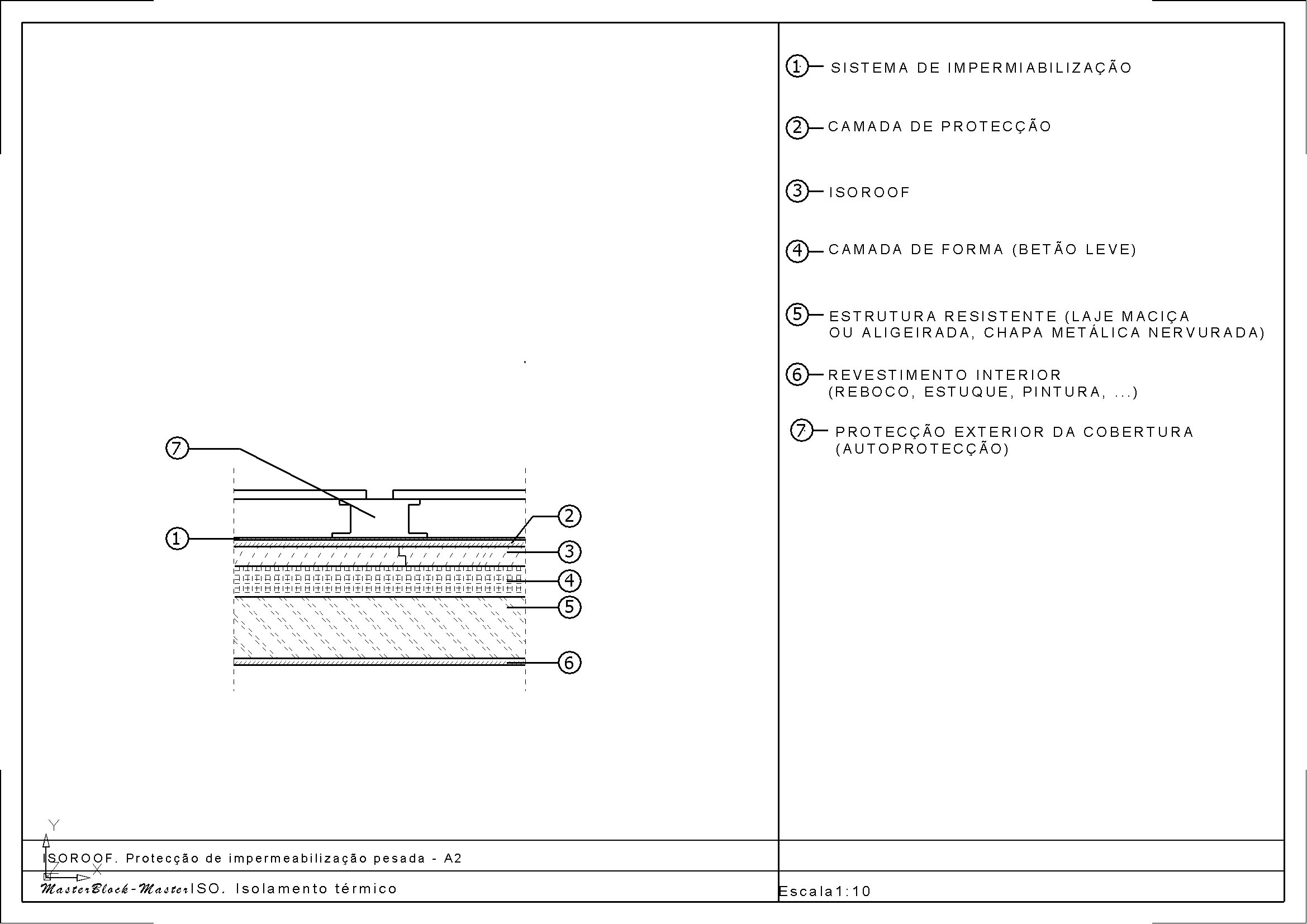

002 - Isoroof - Heavy waterproofing protection

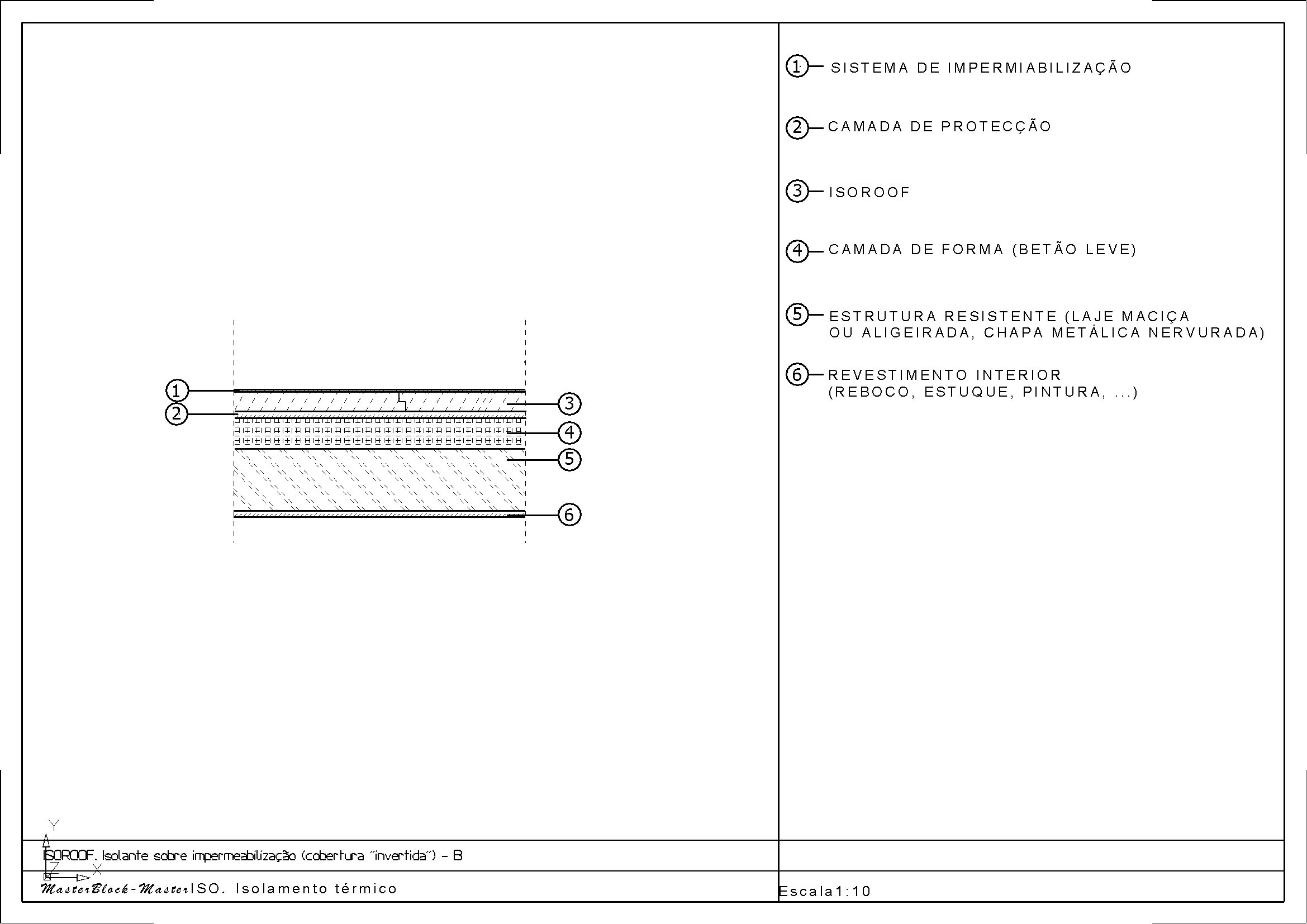

003 - Isoroof - Insulator over waterproofing (inverted roof)





Inclinated roofs - ISOROOF

 DWG JPG
 3D

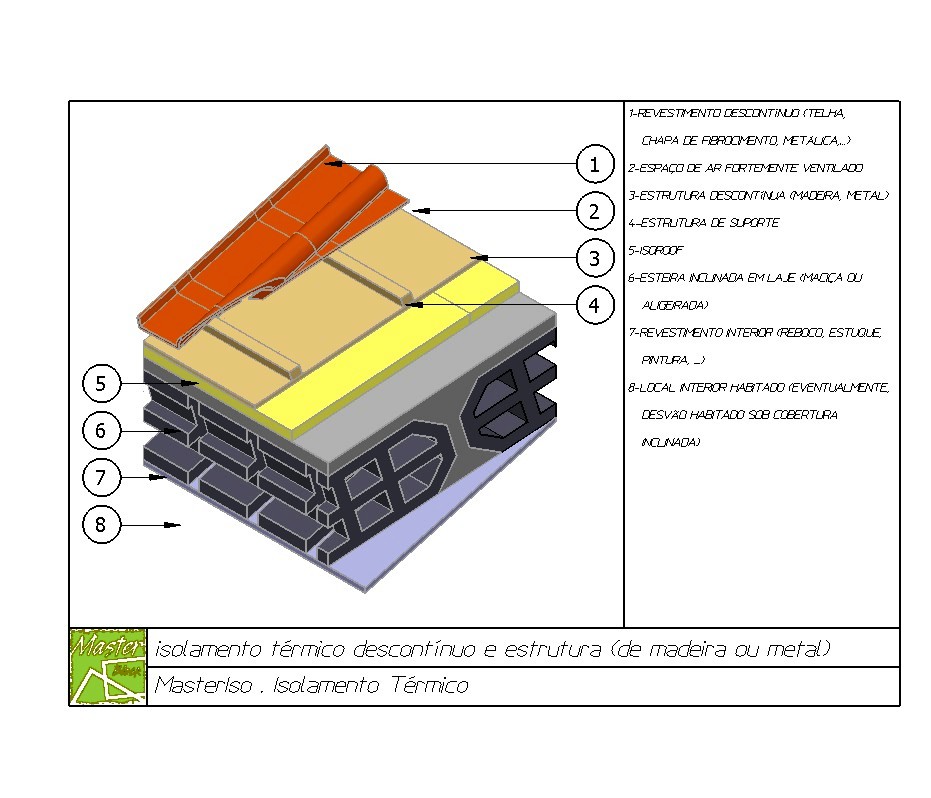

001 - Isoroof - Discontinuous thermal insulation and wooden structure

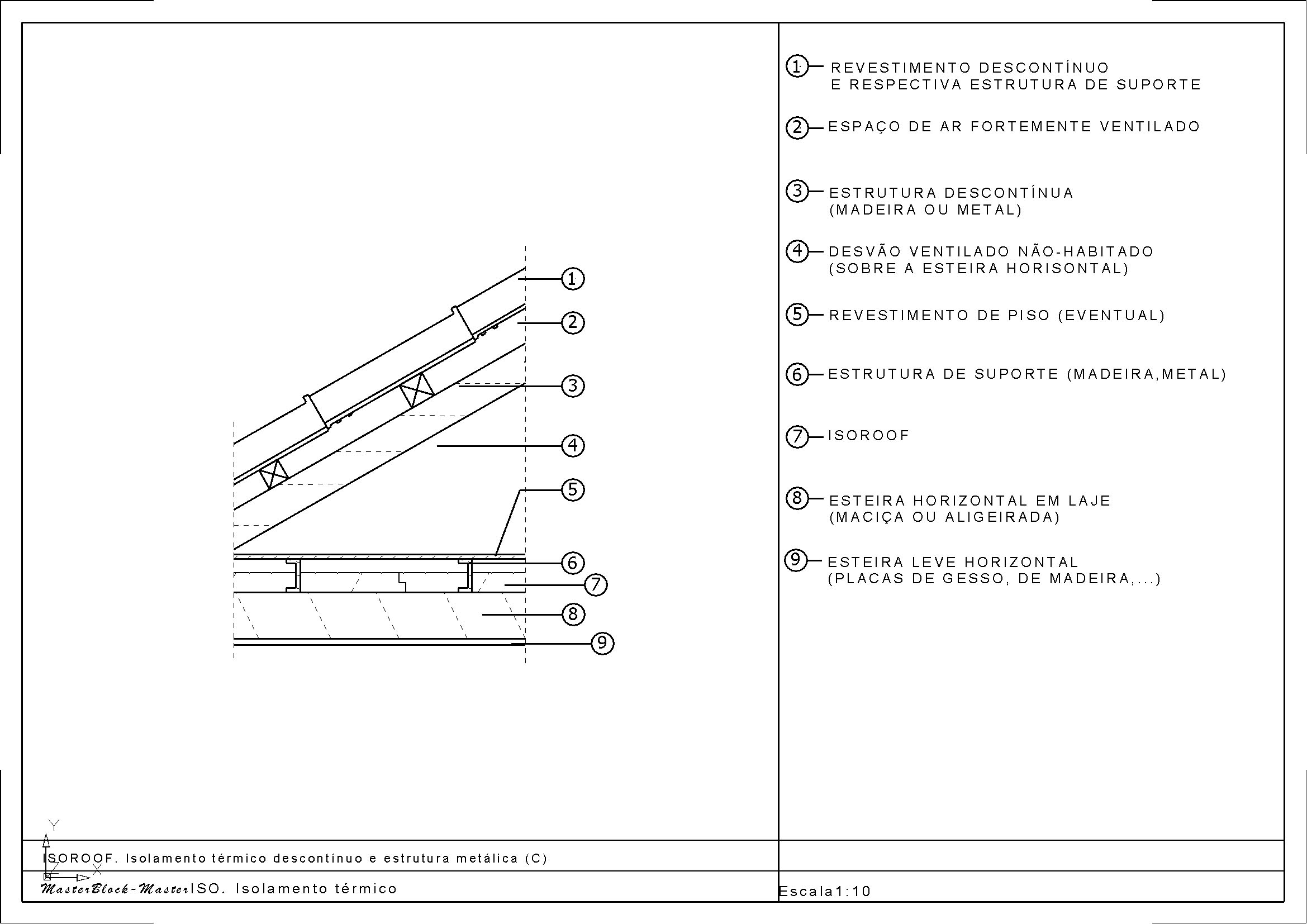

002 - Isoroof - Discontinuous thermal insulation and metallic structure

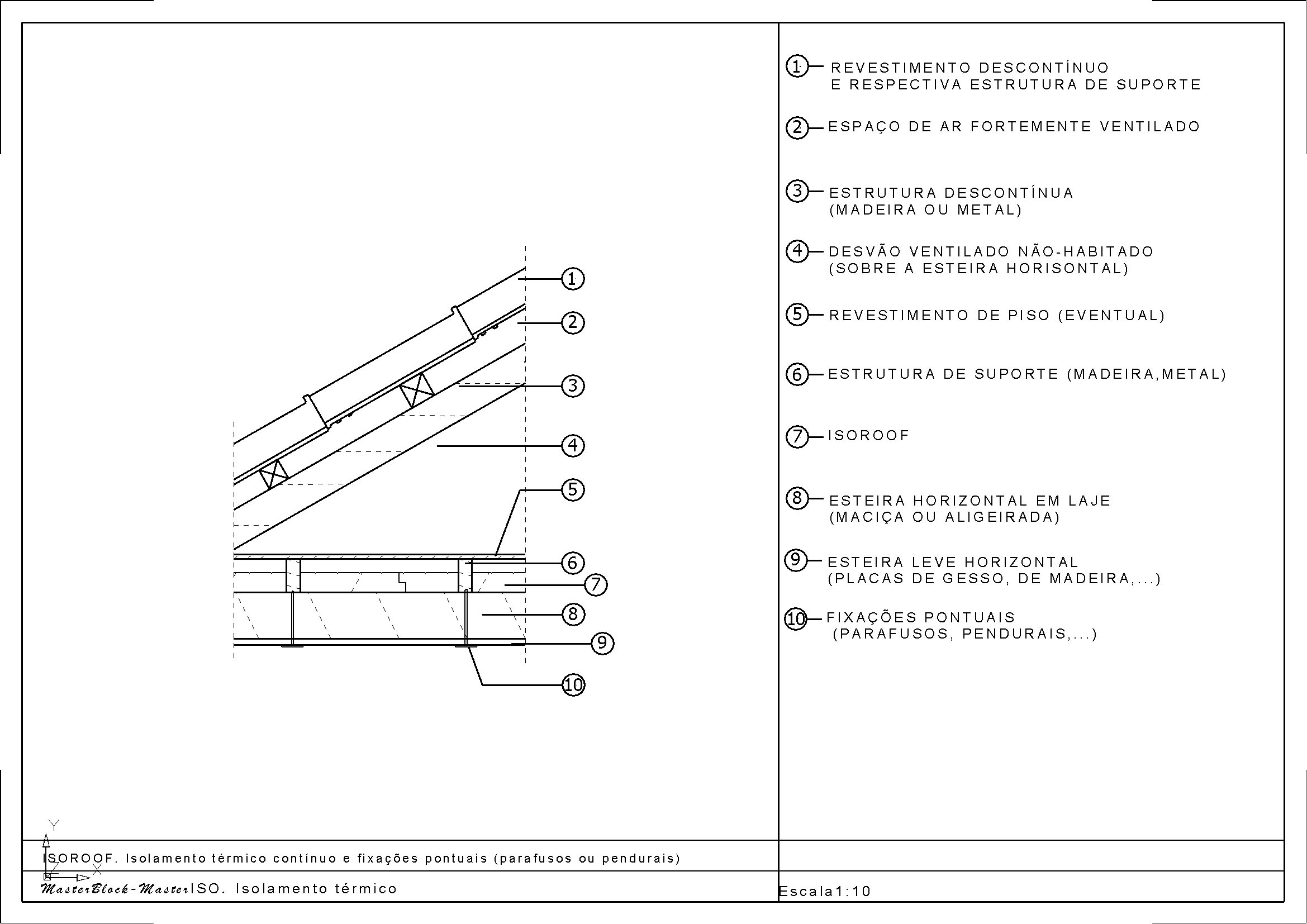

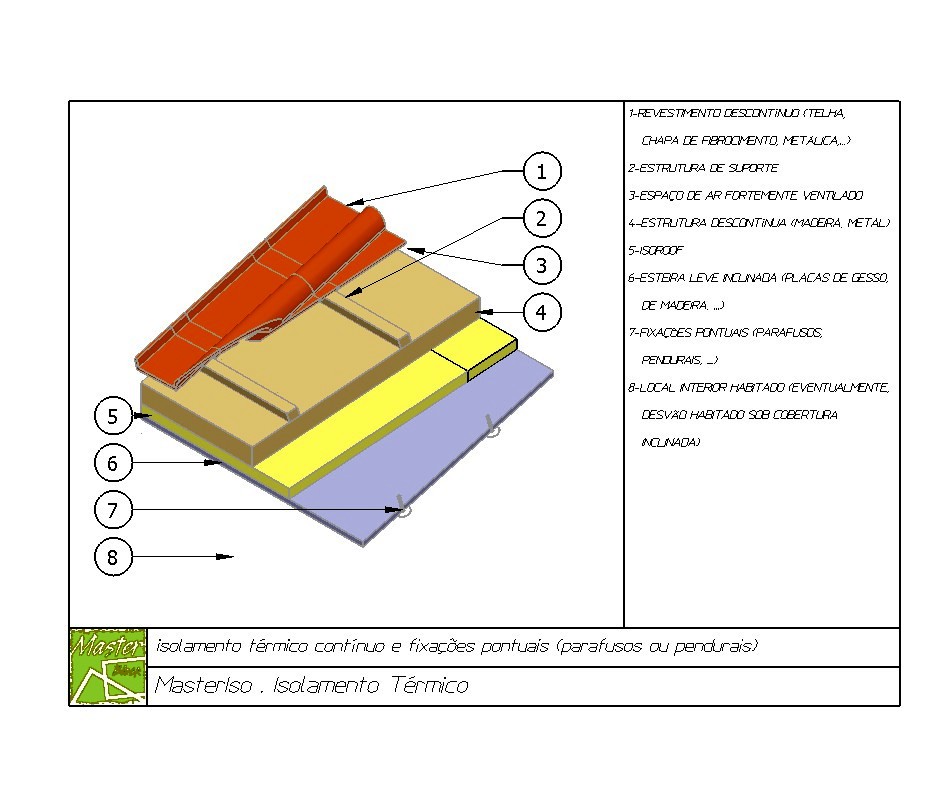

003 - Isoroof - Continuous thermal insulation and some fixation points

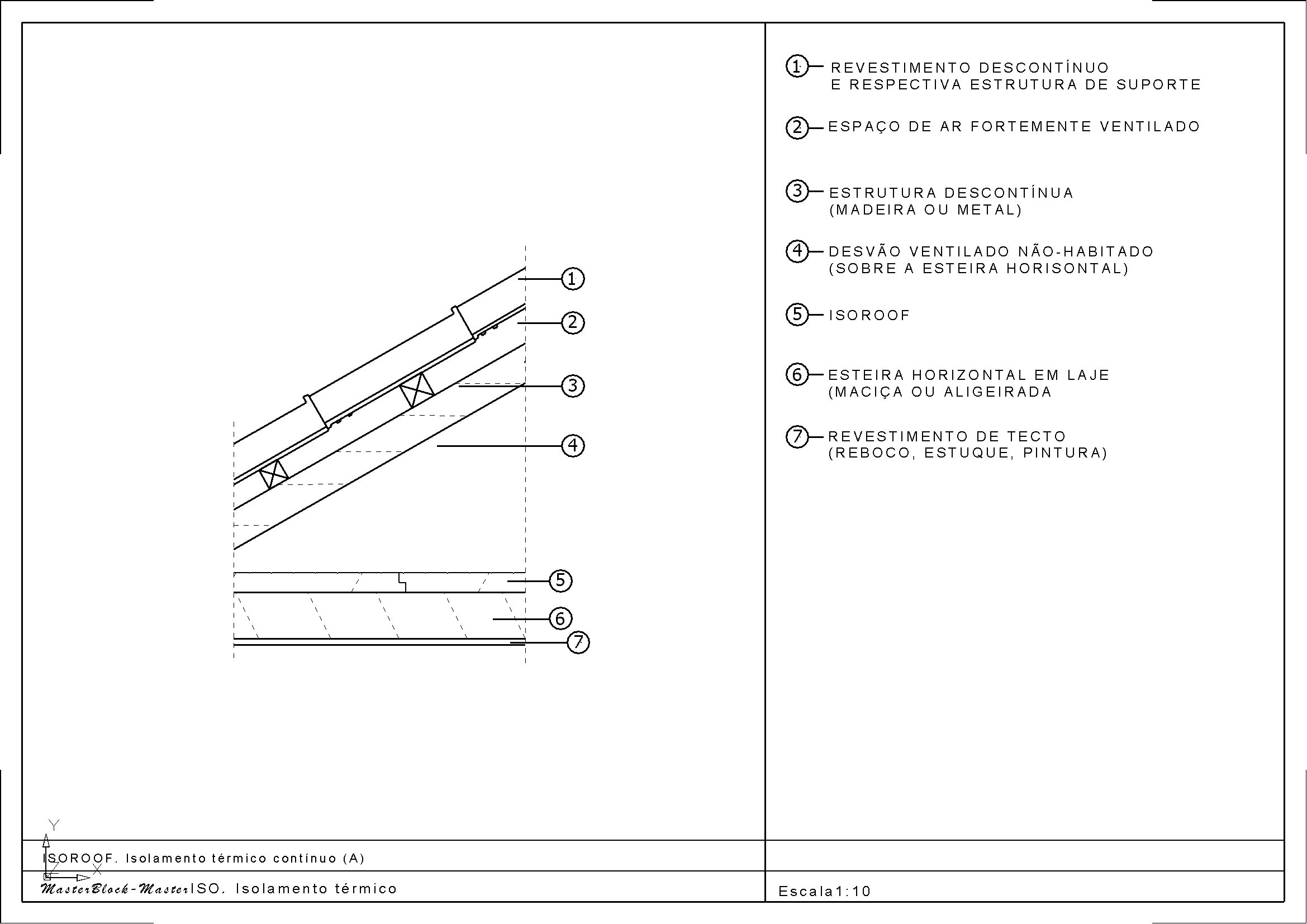

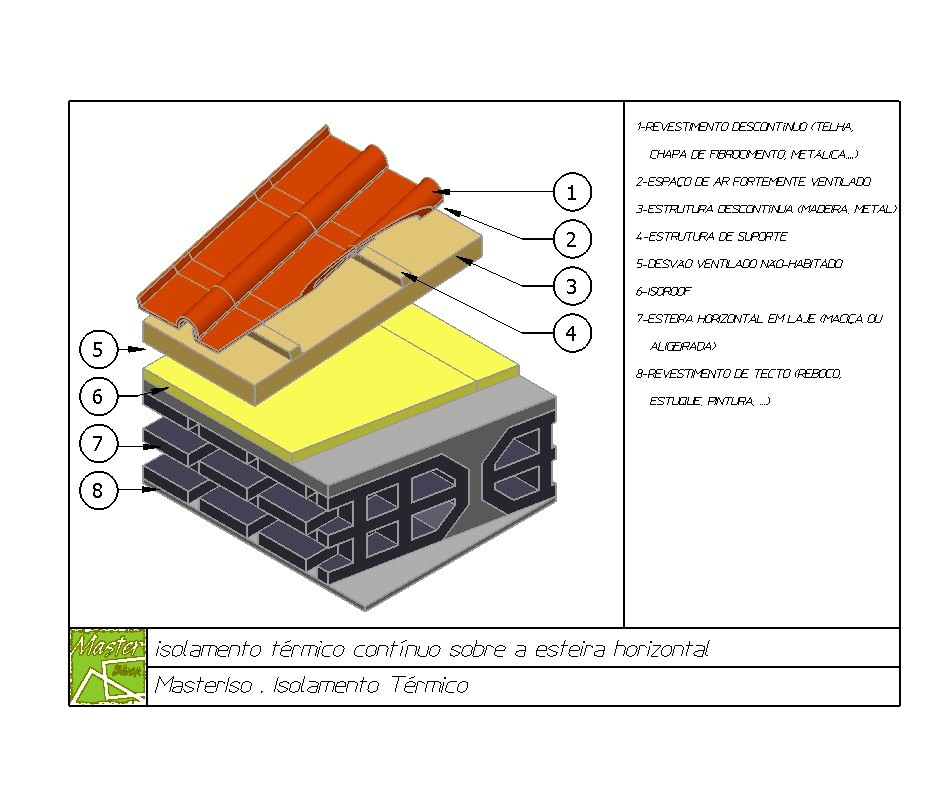

004 - Isoroof - Continuous thermal insulation
005 - Isoroof - Discontinuous thermal insulation and wooden structure
006 - Isoroof - Discontinuous thermal insulation and metallic structure

007 - Isoroof - Continuous thermal insulation and some fixation points
