Sandwich Panel
The Sandwich Panel is composed by two galvanized or thermo-lacquered metal sheets with 0,55 mm, slightly striated or smooth, having a polyurethane (PUR) core and a density of 42 kg/m3.
Option: Core with classification of protection against fire Bs2do (PIR).
Technical Characteristics
Advantages of the Sandwich panel:
Finishing options: metal sheet of galvanized steel, lacquered, plastified or inox.
- General Sales Conditions
- Purchasing Conditions
The Sandwich Panel is composed by two galvanized or thermo-lacquered metal sheets with 0,55 mm, slightly striated or smooth, having a polyurethane (PUR) core and a density of 42 kg/m3.
Option: Core with classification of protection against fire Bs2do (PIR).
Technical Characteristics
- Specific mass: 42 kg/m3 (+2 kg)
- Thermal conductivity: 0,022 kcal/m2hºc
- Water absorption: < 20 gr/m2
- Closed cells: >95%
- Thickness of the metal sheet: 0,58 mm
- Low index of zinc: 255 gr/m2
- Thickness of the primary: 5 microns
- Thickness of the polyester lacquer: 20 microns
- Profiles for the panels fixation
Advantages of the Sandwich panel:
- Excellent thermal insulation
- Easy and quick to instal
- Perfect continuity of insulation
- Waterproofing
- Durability
Finishing options: metal sheet of galvanized steel, lacquered, plastified or inox.

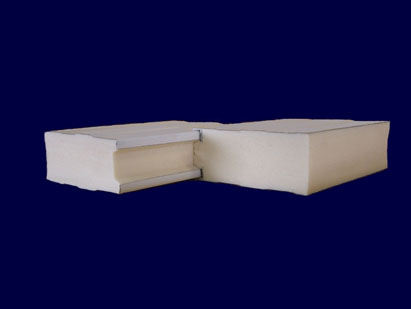

Front Sandwich Panel Panel with double fitting male/female  |

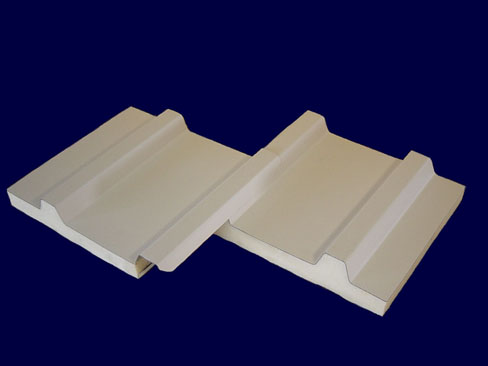

Roof Sandwich Panel The panels are connected to each other by the superposition of a wave  |
